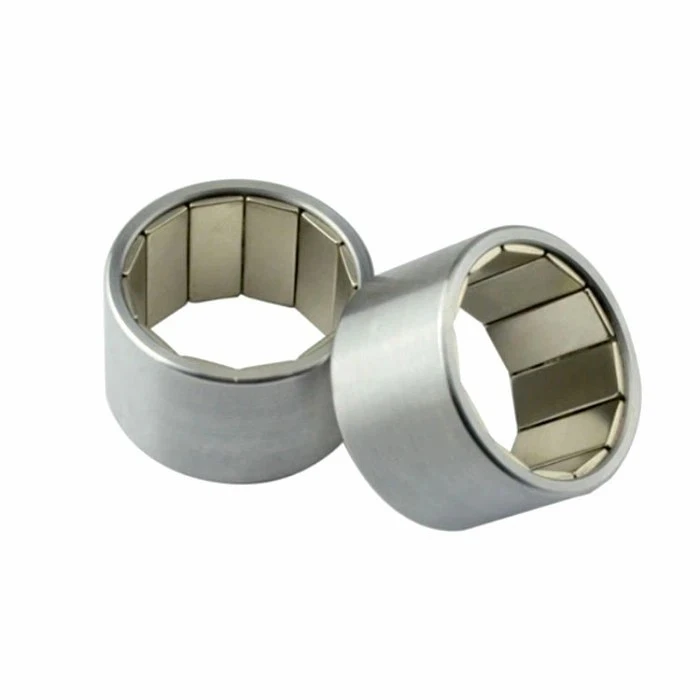

Dab tsi yog AC Motor Sib Nqus Rotor

AC lub cev muaj zog sib nqus rotors xa mus rau cov khoom sib nqus ntawm AC lub cev muaj zog. Lawv yog lub luag hauj lwm rau tsim cov magnetic teb uas tsav cov kev sib hloov ntawm lub cev muaj zog ncej. Cov hlau nplaum rotor yog ib qho tseem ceeb ntawm AC lub cev muaj zog, vim nws cuam tshuam nrog stator windings los tsim cov rotating magnetic teb uas powers lub cev muaj zog.

Vim Li Cas Xaiv Peb

Kev Txawj Ntse Thiab Kev Paub
Peb pab pawg kws tshaj lij muaj ntau xyoo dhau los hauv kev xa cov kev pabcuam zoo rau peb cov neeg siv khoom. Peb ntiav tsuas yog cov kws tshaj lij tshaj lij uas muaj cov ntaub ntawv pov thawj ntawm kev xa cov txiaj ntsig tshwj xeeb.

Tus nqi sib tw
Peb muab cov nqi sib tw rau peb cov kev pabcuam yam tsis muaj kev cuam tshuam rau qhov zoo. Peb cov nqi yog pob tshab, thiab peb tsis ntseeg hauv cov nqi zais lossis cov nqi.

Cov neeg siv khoom txaus siab
Peb tau cog lus tias yuav xa cov kev pabcuam zoo tshaj plaws uas tshaj peb cov neeg tau txais kev cia siab. Peb siv zog los xyuas kom meej tias peb cov neeg siv khoom txaus siab rau peb cov kev pabcuam thiab ua haujlwm ze nrog lawv kom ntseeg tau tias lawv tau ntsib.

One-Stop Service
Peb cog lus tias yuav muab koj cov lus teb ceev tshaj plaws, tus nqi zoo tshaj, qhov zoo tshaj plaws, thiab ua tiav cov kev pab cuam tom qab muag.

Sib Nqus Ncej Rotor

Sib nqus Rotor Assembly

Sib Nqus Rotor Thiab Impeller

Flywheel Magnet Rotor

DC Tsav Permanent Magnet Rotor

AC Tsav Sib Nqus Rotor

Permanent Magnet Rotor

Neodymium hlau nplaum Rotor

Bonded NdFeB Magnet Rotor

Ac Motor Sib Nqus Rotor Ua Haujlwm Li Cas?

AC lub cev muaj zog sib nqus rotor feem ntau muaj cov tub ntxhais sib nqus thiab windings. Cov tub ntxhais hlau nplaum yog tsim los ntawm cov khoom siv sib nqus, xws li hlau, hlau, lossis cov hlau nplaum ruaj khov, thiab yog tsim los ua kom pom tseeb thiab ncaj qha rau cov hlau nplaum. Cov windings, uas yog hluav taws xob conductors, yog qhwv nyob ib ncig ntawm lub magnetic core thiab nqa hluav taws xob tam sim no.

Thaum AC tam sim no siv rau stator windings, nws tsim ib qho chaw sib nqus uas cuam tshuam nrog cov hlau nplaum rotor. Qhov kev sib cuam tshuam no ua rau lub zog torque, uas ua rau lub rotor tig thiab tsav lub cev muaj zog. Qhov ceev thiab kev taw qhia ntawm lub rotor kev sib hloov yog nyob ntawm qhov zaus thiab theem ntawm AC tam sim no siv rau stator windings.

AC lub cev muaj zog sib nqus rotors tuaj nyob rau hauv cov qauv sib txawv thiab kev teeb tsa, suav nrog induction motors thiab cov hlau nplaum ruaj khov. Induction motors siv lub qhov txhab rotors, qhov twg cov hluav taws xob tam sim no ntws los ntawm cov windings los tsim ib qho chaw sib nqus. Ntawm qhov tod tes, cov hlau nplaum ruaj khov rotors siv cov hlau nplaum ruaj khov los tsim cov hlau nplaum, tshem tawm qhov xav tau ntawm cov hluav taws xob tam sim no hauv lub rotor.

AC lub cev muaj zog sib nqus rotors yog siv rau hauv ntau yam kev siv, nrog rau kev siv tshuab, kiv cua, twj, compressors, thiab khoom siv hauv tsev. Lawv cov qauv tsim thiab kev ua tau zoo tuaj yeem sib txawv nyob ntawm cov ntawv thov tshwj xeeb thiab cov kev xav tau ntawm lub cev muaj zog.

Ob Hom AC Rotors yog dab tsi?

Muaj ob lub ntsiab ntawm AC rotors: induction rotors thiab cov hlau nplaum ruaj khov rotors. Nov yog cov lus piav qhia luv luv ntawm txhua hom.
Induction rotors:Induction rotors yog ntau hom AC rotors. Lawv muaj cov tub ntxhais sib nqus ua los ntawm cov hlau lossis hlau, thiab cov windings yog qhwv ib ncig ntawm cov tub ntxhais kom nqa hluav taws xob tam sim no. Thaum AC tam sim no siv rau stator windings, nws tsim ib qho chaw sib nqus uas ua rau cov dej ntws hauv lub rotor windings. Cov induced tam sim no tsim ib qho chaw sib nqus uas cuam tshuam nrog lub stator teb, tsim lub zog thiab ua rau lub rotor tig.
Permanent hlau nplaum rotors:Cov hlau nplaum ruaj khov rotors siv cov hlau nplaum ruaj khov los tsim cov hlau nplaum uas xav tau rau kev sib hloov rotor. Cov rotors no muaj cov hlau nplaum ruaj khov rau hauv lub rotor core lossis txuas rau nws qhov chaw. Tsis zoo li induction rotors, cov hlau nplaum ruaj khov rotors tsis tas yuav muaj hluav taws xob tam sim no los tsim ib qho chaw sib nqus. Hloov chaw, cov hlau nplaum ruaj khov muab cov hlau nplaum uas tsav lub rotor. Cov hlau nplaum ruaj khov rotors feem ntau ua haujlwm tau zoo dua thiab muaj zog ntau dua li induction rotors.
Ob hom AC rotors muaj lawv tus kheej qhov zoo thiab qhov tsis zoo, thiab qhov kev xaiv ntawm hom rotor nyob ntawm cov ntawv thov tshwj xeeb, xws li cov zis hluav taws xob, kev ua haujlwm zoo, ceev, thiab tus nqi. Induction rotors muaj ntau dua nyob rau hauv qis- thiab nruab nrab-lub zog AC motors, thaum cov hlau nplaum ruaj khov rotors feem ntau siv nyob rau hauv high-power thiab high-efficiency AC motors.

Yuav ua li cas Rotor tsim cuam tshuam qhov kev ua tau zoo ntawm Ac Tsav?

Tus tsim ntawm lub rotor nyob rau hauv ib qho alternating tam sim no (AC) lub cev muaj zog cuam tshuam nws efficiency, uas yog ib qho kev ntsuas ntawm yuav ua li cas zoo hluav taws xob lub zog hloov mus rau txhua yam zog. Ntau yam cuam tshuam rau rotor tsim cuam tshuam kev ua haujlwm.

Cov khoom siv conductivity:Cov rotor tuav thiab cov nplhaib kawg feem ntau yog ua los ntawm tooj liab lossis txhuas vim lawv cov hluav taws xob zoo heev. Siv cov khoom siv nrog cov conductivity siab dua txo qhov I²R poob (qhov kuv yog tam sim no thiab R yog qhov tsis kam), yog li txhim kho kev ua haujlwm.

Qhov Tsim:Tus naj npawb thiab cov duab ntawm cov slots hauv lub rotor cuam tshuam rau kev faib tawm ntawm cov hlau nplaum sib nqus thiab qhov cuam tshuam tam sim no hauv cov rotor tuav. Optimizing slot geometry tuaj yeem txo qhov kev sib nqus poob thiab txhim kho plam, uas yog qhov sib txawv ntawm synchronous ceev thiab rotor ceev.

Kev kho deg:Siv cov kev kho deg rau cov rotor tuav, xws li ribbing lossis grooving, tuaj yeem pab tshem tawm cov cua sov kom zoo, txo cov thermal poob thiab txhim kho kev ua haujlwm.

Squirrel Cage vs Wound Rotor:Induction motors feem ntau muaj squirrel tawb rotor los yog lub qhov txhab rotor. Squirrel tawb rotors yog yooj yim dua thiab muaj zog dua tab sis tej zaum yuav muaj kev poob ntau dua vim cov nyhuv ntawm daim tawv nqaij thiab qhov sib thooj ntawm cov zaus ntau dua. Cov kab mob rotors tuaj yeem txuas nrog cov kev tawm tsam sab nraud los tswj kev pib thiab ceev, uas tuaj yeem txhim kho kev ua haujlwm zoo nyob rau hauv qee qhov kev ua haujlwm los ntawm kev txo qis thaum pib thiab ua haujlwm qis.

Rotor Balancing:Kev ntsuas kom zoo ntawm lub rotor txo qis kev vibration thiab txhua yam poob. Cov rotors tsis sib npaug tuaj yeem ua rau muaj kev sib txhuam thiab hnav, uas txo kev ua haujlwm.

Air Gap:Cov huab cua sib txawv ntawm lub stator thiab rotor yuav tsum zoo ib yam thiab me me li sai tau yam tsis muaj kev sib cuag ntawm lub cev. Qhov sib txawv ntawm huab cua loj dua ua rau muaj kev tsis txaus siab, yuav tsum tau muaj cov hlau nplaum ntau dua, uas ua rau muaj kev poob ntau ntxiv.

Core Losses:Lub rotor core feem ntau yog laminated los txo qhov poob tam sim no. Qhov zoo ntawm cov rwb thaiv tsev ntawm laminations thiab qhov sib xws ntawm cov lamination pawg cuam tshuam rau cov tub ntxhais poob. Txo cov tub ntxhais poob qis ua rau tag nrho lub cev muaj zog efficiency.

Cooling System:Lub tshuab ua kom txias tau zoo yog qhov tseem ceeb rau kev tshem tawm cov cua sov uas tshwm sim thaum lub sijhawm ua haujlwm ntawm lub cev muaj zog. Txhim kho cua txias, txawm tias los ntawm huab cua, kua, los yog yuam convection, tuaj yeem txo qhov kub thiab tswj kev ua haujlwm tau zoo nyob rau lub sijhawm.

Dab tsi yog Cov Khoom Siv Siv rau AC Tsav Sib Nqus Rotor?

Cov khoom siv dav siv rau AC motor magnetic rotors suav nrog.
Hlau:Hlau yog tus nqi-zoo thiab siv dav siv cov khoom sib nqus rau AC lub cev muaj zog rotors. Nws muaj cov khoom sib nqus zoo thiab yog qhov yooj yim rau tshuab.
Hlau:Hlau yog lwm qhov kev xaiv nrov rau AC lub cev muaj zog rotors, tshwj xeeb tshaj yog rau kev ua haujlwm siab dua. Cov qib sib txawv ntawm cov hlau tuaj yeem siv los ua kom tiav cov khoom sib nqus tshwj xeeb thiab lub zog txhua yam.
Cobalt:Cobalt yog cov khoom siv sib nqus nrog cov hlau nplaum sib nqus thiab cov coercivity qis. Nws yog feem ntau siv nyob rau hauv cov hlau nplaum ruaj khov AC lub cev muaj zog rotors kom ua tiav kev ua haujlwm siab dua thiab lub zog ceev.
Nickel:Nickel yog cov khoom tsis sib nqus uas qee zaum siv los ua ke nrog cov khoom sib nqus los txhim kho cov khoom siv hluav taws xob thiab cov cua sov ntawm lub rotor.
Neodymium:Neodymium yog lub ntiaj teb tsis tshua muaj cov khoom siv hlau nplaum. Nws yog feem ntau siv nyob rau hauv cov hlau nplaum ruaj khov AC lub cev muaj zog rotors kom ua tiav siab sib nqus zog ceev thiab ua haujlwm tau zoo.
Samarium:Samarium yog lwm yam tsis tshua muaj hauv ntiaj teb nrog cov khoom sib nqus muaj zog. Nws yog qee zaum siv cov hlau nplaum ruaj khov AC lub cev muaj zog ua ke nrog neodymium lossis lwm yam khoom sib nqus.
Ferrite:Ferrite yog cov khoom siv sib nqus hlau nplaum uas muaj qhov sib nqus sib nqus tsawg thiab coercivity. Nws yog feem ntau siv nyob rau hauv qis-power AC lub cev muaj zog rotors thiab rau daim ntawv thov uas yuav tsum tau ib tug qis zog magnetic teb.

Yuav Ua Li Cas Lub Rotor Cooling System Hauv Ib Lub Tshuab Ac Tsav cuam tshuam nws qhov kev ua tau zoo tag nrho?

Lub rotor txias system nyob rau hauv AC lub cev muaj zog ua lub luag haujlwm tseem ceeb hauv kev tswj xyuas qhov kub thiab txias, uas cuam tshuam rau lub cev muaj zog, kev ua tau zoo, kev ua haujlwm ntev, thiab kev ntseeg tau. Lub tshuab ua kom txias zoo ua kom ntseeg tau tias cov cua sov uas tsim los ntawm hluav taws xob poob hauv lub cev muaj zog raug tshem tawm kom zoo, tiv thaiv kev kub dhau thiab khaws cia kev ncaj ncees ntawm lub cev muaj zog ntawm cov rwb thaiv tsev.

Kev cuam tshuam kev ua haujlwm
Thermal txwv:Cov motors tau tsim los ua haujlwm nyob rau hauv qee qhov kev txwv kub. Tshaj li cov kev txwv no tuaj yeem ua rau txo qis kev ua haujlwm, vim tias qhov kub thiab txias tuaj yeem ua rau cov khoom sib nqus hauv lub rotor poob qee qhov ntawm nws cov khoom sib nqus, uas ua rau poob hauv torque ntau lawm.
Kev ua tau zoo:Overheating tuaj yeem txo qhov kev ua haujlwm ntawm lub cev muaj zog. Raws li qhov kub thiab txias, qhov resistivity ntawm tooj liab windings nce, ua rau siab dua I²R poob (qhov kuv yog tam sim no thiab R yog tsis kam). Cov cua txias pab tswj qhov kub thiab txias thiab ua kom muaj zog dua.
Tswj ceev:Rau cov motors uas xav tau kev tswj ceev, tshwj xeeb tshaj yog nyob rau hauv qhov sib txawv zaus drives (VFDs), kev tswj kom txias kom zoo yog qhov tseem ceeb los xyuas kom meej tias lub cev muaj zog tuaj yeem tswj cov khoom sib txawv thiab zaus yam tsis muaj cua sov.

Longevity thiab Reliability cuam tshuam
Rwb thaiv tsev System:Ntev raug rau qhov kub thiab txias tuaj yeem degrade lub cev muaj zog lub rwb thaiv tsev. Rwb thaiv tsev tsis ua hauj lwm yog ib qho ntawm feem ntau ua rau lub cev tsis ua hauj lwm. Los ntawm kev ua kom lub cev txias, lub neej ntawm cov rwb thaiv tsev yog txuas ntxiv, uas nyob rau hauv lem extends tag nrho lifespan ntawm lub cev muaj zog.
Winding Integrity:Qhov ntsuas kub siab tuaj yeem ua rau kom muaj kev laus ntawm lub cev muaj zog windings, uas tuaj yeem ua rau luv luv lossis tawg hauv cov neeg xyuas pib. Cov cua txias pab khaws lub cev kev ncaj ncees ntawm cov windings.
Bearing Life:Cov kub kub kuj tuaj yeem cuam tshuam rau lub neej ntawm cov kabmob uas txhawb nqa lub rotor. Cov cua kub ntau dhau tuaj yeem ua rau cov roj nplua nyeem tawg ua ntej thiab ua rau cov kabmob tsis ua haujlwm.

Zuag qhia tag nrho, lub rotor txias system yog ib qho tseem ceeb los xyuas kom meej tias AC lub cev muaj zog ua haujlwm nyob rau hauv nws cov qauv tsim, muab kev ua haujlwm zoo ib yam, ua kom muaj txiaj ntsig zoo tshaj plaws, thiab ua kom lub neej ua haujlwm ntev nrog kev poob qis. Yog tsis muaj cua txias txaus, lub cev muaj zog qhov kev ua tau zoo yuav raug kev txom nyem, thiab qhov kev pheej hmoo ntawm kev ua tsis tiav yuav nce ntxiv, uas yuav ua rau raug nqi kho lossis hloov pauv.

Lub luag haujlwm ntawm Damping Bars hauv Rotor ntawm AC Tsav yog dab tsi?

damping tuav, tseem hu ua damper tuav los yog rotor damping tuav, yog hlau tuav los yog rods ntsia rau hauv lub rotor ntawm AC lub cev muaj zog. Lawv lub hom phiaj tseem ceeb yog txo cov neeg kho tshuab kev co thiab suab nrov tsim los ntawm rotor thaum ua haujlwm. Los ntawm kev ntxiv damping tuav rau lub rotor, lub cev muaj zog ruaj khov tuaj yeem txhim kho ntau txoj hauv kev, suav nrog.
Kev vibration damping:Damping tuav pab nqus thiab dissipate cov neeg kho tshuab kev co ntawm lub rotor. Lawv ua raws li kev vibration absorber, txo qhov amplitude thiab qhov hnyav ntawm kev vibrations, uas nyob rau hauv lem pab txo suab nrov thiab txhim kho tag nrho stability ntawm lub cev muaj zog.
Magnetic teb stabilization:Damping tuav kuj tuaj yeem muaj qhov cuam tshuam me ntsis ntawm cov khoom sib nqus sib nqus hauv lub rotor. Los ntawm kev hloov cov magnetic teb, lawv tuaj yeem pab txo qhov kev sib haum xeeb thiab cov suab nrov sib nqus, ntxiv rau kev ua kom lub cev muaj zog.
Structural reinforcement:Damping tuav muab cov txheej txheem ntxiv rau lub rotor, ua rau nws cov neeg kho tshuab rigidity thiab tsis kam mus deformation. Qhov no yuav pab txo qis rotor kev co thiab txhim kho tag nrho kev ruaj ntseg ntawm lub cev muaj zog.
Thaum tshav kub kub dissipation:Damping tuav tuaj yeem ua raws li lub dab dej kub, pab kom dissipate cua sov tsim thaum lub sijhawm ua haujlwm. Los ntawm kev txhim kho cov cua sov dissipation, lub cev muaj zog qhov kub tuaj yeem tswj tau zoo dua, uas pab txuas lub sijhawm lub cev muaj zog thiab txhim kho kev ruaj ntseg.Qhov sib ntxiv ntawm damping tuav rau lub rotor ntawm AC lub cev muaj zog tuaj yeem muaj kev cuam tshuam zoo rau nws txoj kev ruaj ntseg los ntawm kev txo cov tshuab vibrations thiab suab nrov, txhim kho magnetic teb faib, muab cov qauv kev txhawb zog, thiab txhim kho cov cua sov dissipation. Qhov tshwj xeeb tsim thiab kev siv cov damping tuav yuav txawv nyob ntawm seb lub cev muaj zog thiab kev siv.

Yuav Ua Li Cas Lub Rotor Tsim Ntawm Multiphase Ac Tsav txawv ntawm Ib-theem Tsav?

Lub rotor tsim ntawm multiphase AC lub cev muaj zog feem ntau txawv ntawm ib theem lub cev muaj zog ntau txoj hauv kev. Nov yog qee qhov sib txawv tseem ceeb.
Number of ncej:Lub rotor ntawm multiphase AC lub cev muaj zog muaj ntau tus ncej ntau dua li ntawm ib-theem lub cev muaj zog. Tus naj npawb ntawm tus ncej yog txiav txim los ntawm tus naj npawb ntawm cov theem hauv lub cev muaj zog. Piv txwv li, peb-theem AC lub cev muaj zog feem ntau muaj peb tus ncej, thaum lub cev muaj zog ib zaug tsuas muaj ib tus ncej xwb.
Winding configuration:Lub winding configuration ntawm lub rotor nyob rau hauv ib tug multiphase AC lub cev muaj zog yog txawv los ntawm ib tug ib-theem lub cev muaj zog. Nyob rau hauv lub multiphase AC lub cev muaj zog, cov windings feem ntau yog teem nyob rau hauv lub hnub qub los yog delta configuration los tsim ib tug balanced magnetic teb. Nyob rau hauv ib-theem lub cev muaj zog, lub winding configuration feem ntau yog ib tug yooj yim voj.
Slotting qauv:Lub slotting qauv ntawm lub rotor nyob rau hauv ib tug multiphase AC lub cev muaj zog yog feem ntau complex tshaj li ntawm ib-theem lub cev muaj zog. Cov slots nyob rau hauv lub rotor yog tsim los kom haum rau ntau yam windings thiab optimize lub magnetic teb faib. Hauv ib-theem lub cev muaj zog, cov qauv slotting feem ntau yog yooj yim.
Khoom siv:Cov khoom xaiv rau lub rotor nyob rau hauv ib tug multiphase AC lub cev muaj zog tej zaum yuav txawv los ntawm ib tug ib-theem lub cev muaj zog. Nyob rau hauv multiphase AC motors, siab Magnetic permeability cov ntaub ntawv xws li hlau los yog hlau yuav siv tau los txhim kho lub magnetic teb tiam. Hauv ib-theem lub cev muaj zog, cov ntaub ntawv sib nqus permeability qis dua li cov hlau cam khwb cia.
Kev tsim khoom:Kev tsim cov txheej txheem rau lub rotor nyob rau hauv ib tug multiphase AC lub cev muaj zog yog feem ntau complex tshaj li ntawm ib-theem lub cev muaj zog. Ntau yam windings thiab nyuaj slotting qauv yuav tsum tau ntau precision manufacturing cov txheej txheem thiab cov txheej txheem.
Cov kev sib txawv ntawm rotor tsim los ntawm qhov yuav tsum tau ua ntawm multiphase AC motors los tsim kom muaj qhov sib npaug thiab sib nqus sib nqus. Cov ncej ntxiv, cov txheej txheem winding nyuaj, cov qauv slotting, thiab cov khoom siv xaiv pab ua kom muaj kev ua tau zoo, kev ua tau zoo, thiab kev ruaj ntseg hauv multiphase AC motors.

Qhov txawv ntawm AC Rotor thiab DC Rotor yog dab tsi?

AC (Alternating Current) rotors thiab DC (Direct Current) rotors yog cov khoom tseem ceeb ntawm cov tshuab hluav taws xob-tshwj xeeb, induction motors thiab commutator motors, feem. Qhov sib txawv ntawm lawv feem ntau yog los ntawm lawv cov kev tsim kho thiab kev ua haujlwm.

AC Rotor
Induction motors siv AC rotor, uas tuaj yeem yog ob hom: squirrel-cage thiab lub qhov txhab rotor.
Squirrel-cage rotors muaj cov kab hluav taws xob txuas ntawm ob qhov kawg los ntawm qhov kawg rings. Lawv tsis muaj windings lossis rings.
Cov kab mob rotors muaj cov windings zoo ib yam li cov nyob hauv stator, tab sis muaj ntau qhov sib txuas, thiab lawv txuas nrog cov hlua khi uas tso cai rau kev sib txuas sab nraud los ntawm txhuam.
Lub rotor nyob rau hauv lub induction lub cev muaj zog tsis xav tau ib tug cais fais fab mov; Nws yog energized los ntawm induced tam sim no tsim los ntawm kev hloov magnetic teb los ntawm stator windings.
Qhov ceev ntawm AC rotor yog me ntsis tsawg dua li synchronous ceev ntawm lub rotating magnetic teb vim plam, uas yog ib tug xav tau tus yam ntxwv rau kev sib txawv torque daim ntaub ntawv.

DC Rotor
DC motors siv lub rotor nrog windings, tseem hu ua armature, uas txuas nrog lub commutator.
Lub commutator yog ib lub nplhaib segmented uas tso cai rau lub rotor windings kom tswj tau ib qho unidirectional ntws ntawm tam sim no thaum lub rotor tig.
Cov txhuam hniav ua rau kev sib cuag nrog cov commutator ntu, muab hluav taws xob rau lub rotor windings.
DC rotor yuav tsum muaj lub zog sib cais los ntawm cov txhuam hniav thiab commutator.
DC lub cev muaj zog tuaj yeem ua tiav qhov nrawm ze lossis sib npaug ntawm qhov sib npaug ntawm qhov siv hluav taws xob thiab tuaj yeem muab lub zog tsis tu ncua hla ntau qhov nrawm.

Qhov sib txawv tseem ceeb ntawm AC thiab DC rotors yog nyob rau hauv lawv cov qauv tsim thiab kev xa hluav taws xob. AC rotors yog qhov yooj yim dua thiab muaj zog dua, tsis tas yuav muaj lub nplhaib plam lossis txhuam, ua rau lawv zoo tagnrho rau kev siv ceev ceev thiab tsis muaj kev saib xyuas. DC rotors yog qhov nyuaj dua, xav tau cov txhuam hniav thiab cov commutator, tab sis lawv muaj kev tswj ceev ceev thiab siab pib torque, ua rau lawv haum rau cov ntawv thov uas yuav tsum tau hloov ceev.

Peb lub Hoobkas

Peb cov hlau nplaum feem ntau yog siv rau lub cev muaj zog thiab cov tshuab hluav taws xob, xws li Servo motors, Linear motors, Wind power generators, Automotive drive motors, Compressor motors, Audio equipment, Home theatre, Instrumentation, Medical equipment, Automotive sensors, Wind turbines and magnetic tools etc.

product-1-1

FAQ

Q: Yuav ua li cas AC lub cev muaj zog sib nqus rotor tsim torque?

A: Nyob rau hauv lub AC lub cev muaj zog, lub rotor generates torque los ntawm kev sib cuam tshuam ntawm nws magnetic teb nrog rotating magnetic teb ua los ntawm stator windings. Thaum cov alternating tam sim no ntws los ntawm stator windings, nws tsim ib rotating magnetic teb. Qhov kev txav sib nqus no hla cov kab hluav taws xob ntawm lub rotor (hauv kev tsim squirrel-cage) los yog cov windings ntawm lub qhov txhab rotor, inducing ib tug tam sim no nyob rau hauv lub rotor. Kev sib cuam tshuam ntawm qhov induced tam sim no thiab stator lub magnetic teb ua rau lub zog ntawm lub rotor, tsim torque uas tsav lub rotor txav.

Q: Lub luag haujlwm ntawm plam hauv AC lub cev muaj zog yog dab tsi?

A: Slip yog qhov sib txawv ntawm synchronous ceev ntawm rotating magnetic teb thiab qhov tseeb ceev ntawm lub rotor. Nws yog ib feem ntawm kev ua haujlwm ntawm induction motors thiab tsim nyog rau lub cev muaj zog los tsim torque. Yog tias tsis muaj qee qhov plam, yuav tsis muaj qhov sib txawv ntawm cov chaw sib nqus, thiab yog li tsis muaj qhov cuam tshuam tam sim no hauv lub rotor, ua rau tsis muaj lub zog torque.

Q: Vim li cas rotor tuav skewed hauv qee lub AC motors?

A: Skewing cov tuav hauv lub rotor ntawm AC lub cev muaj zog txhim kho kev faib tawm ntawm cov hlau nplaum thiab txo cov kev sib raug zoo, ua rau kev ua haujlwm zoo dua. Nws pab kom sib npaug lub torque thoob plaws lub rotor thiab txo kev co thiab suab nrov.

Q: Cov ntaub ntawv dab tsi yog siv los tsim AC lub cev muaj zog rotors?

A: Cov ntaub ntawv siv rau rotor tuav hauv squirrel-cage designs feem ntau yog txhuas lossis tooj liab, xaiv rau lawv cov hluav taws xob hluav taws xob siab. Lub rotor tub ntxhais feem ntau yog ua los ntawm cov hlau laminations kom txo qis eddy tam sim no poob. Rau qhov txhab rotors, cov windings yog tsim los ntawm tooj liab lossis txhuas hlau insulated los tiv thaiv luv luv Circuit Court.

Q: Yuav ua li cas yog qhov ceev ntawm AC lub cev muaj zog sib nqus rotor tswj?

A: Qhov ceev ntawm AC lub cev muaj zog tuaj yeem tswj tau los ntawm kev sib txawv ntawm qhov sib txawv ntawm cov khoom siv hluav taws xob (siv cov tsav tsheb sib txawv), kho tus naj npawb ntawm stator ncej, lossis siv txoj hauv kev xws li ncej amplitude modulation lossis theem lub kaum sab xis tswj. Txhua txoj kev cuam tshuam rau qhov ceev ntawm lub rotating magnetic teb, uas nyob rau hauv lem hloov lub rotor ceev.

Q: Lub hom phiaj ntawm cov hlua khi thiab txhuam hauv AC lub cev yog dab tsi?

A: Slip rings thiab txhuam yog siv rau hauv qhov txhab rotor AC motors los muab kev sib txuas sab nraud rau lub rotor windings. Qhov no tso cai rau daim ntawv thov ntawm kev tiv thaiv ntxiv lossis qhov sib txawv ntawm qhov hluav taws xob mus rau lub rotor Circuit Court, uas tuaj yeem siv los tswj lub cev muaj zog ceev.

Q: Vim li cas qee lub AC motors muaj lub tawb rotor thiab lwm tus lub qhov txhab rotor?

A: Kev xaiv ntawm lub tawb rotor thiab lub qhov txhab rotor yog nyob ntawm daim ntawv thov. Cage rotors yog qhov yooj yim dua, rugged ntau dua, thiab tus nqi tsim nyog, ua rau lawv haum rau feem ntau cov qauv siv. Cov kab mob rotors muab qhov zoo ntawm qhov sib txawv ntawm qhov ceev tswj los ntawm kev tawm tsam sab nraud, ua rau lawv zoo tagnrho rau cov ntawv thov uas yuav tsum tau hloov ceev.

Q: Dab tsi yog qhov kev siv ntawm rotors?

A: Rotors tau muab faib ua ntau hom raws li kev tsim, kev tsim kho, thiab kev siv. Cov hom muaj xws li squirrel tawb, qhov txhab, salient ncej, cov hlau nplaum ruaj khov, thiab cov dej rotors. Cov no yog siv nyob rau hauv motors, generators, turbines, thiab twj tso kua mis rau tej lub hom phiaj thiab zoo.

Q: Dab tsi yog daim ntawv thov ntawm magnetic bearings?

A: Sib nqus bearings tau nce siv hauv cov tshuab ua haujlwm xws li compressors, turbines, twj, motors thiab generators. Sib nqus bearings feem ntau siv nyob rau hauv watt-teev meters los ntawm cov khoom siv hluav taws xob los ntsuas kev siv hluav taws xob hauv tsev.

Q: Dab tsi yog qhov ua haujlwm ntawm rotor ncej?

A: Yog tsis muaj lub rotor ncej, tsis tuaj yeem muaj lub tsheb fais fab: Raws li lub plawv ntawm lub tshuab hluav taws xob, nws hloov hluav taws xob rau hauv lub zog kinetic thiab xa qhov no mus rau hauv lub tsheb ciav hlau. Nws tus qauv tsim txiav txim siab qhov nrawm thiab lub zog uas lub tshuab hluav taws xob tuaj yeem ua haujlwm.

Q: Dab tsi yog magnetic motors siv rau?

A: Cov hlau nplaum tas mus li yog siv nyob rau hauv ntau yam khoom siv niaj hnub, xws li cov txhuam hniav hluav taws xob. Nyob rau hauv sib piv rau cov uas tsis yog-existent sib nqus lub cev muaj zog tsuas yog piav qhia, uas yuav siv tau los tsim lub zog los yog hluav taws xob, lawv ua hauj lwm zoo ib yam li AC lub cev muaj zog - nrog kev pab los ntawm electromagnetism.

Q: Dab tsi yog cov rotors siv hauv centrifugation?

A: Centrifuge Rotor Hom
Ob lub ntsiab ntawm cov rotors siv nyob rau hauv chav kuaj centrifuges yog kab rov tav (tseem hu ua viav vias thoob) thiab lub kaum sab xis (los yog lub taub hau lub taub hau) rotors.

Q: Peb daim ntawv thov ntawm cov nyhuv sib nqus yog dab tsi?

A: Cov nyhuv sib nqus ntawm cov tam sim no yog siv rau hauv cov khoom siv xws li hluav taws xob motors, generators, transformers, thiab magnetic resonance imaging (MRI) machines. Cov nyhuv sib nqus ntawm tam sim no, tseem hu ua electromagnetism, yog lub hauv paus ntsiab lus tseem ceeb uas txhawb nqa ntau cov thev naus laus zis niaj hnub no.

Q: Dab tsi yog ob hom rotors pom nyob rau hauv induction motors?

A: Induction motor rotors yuav yog ob hom, qhov txhab rotor lossis squirrel-cage rotor. Lub qhov txhab rotor muaj windings zoo ib yam li thiab qhov txhab rau tib tus naj npawb ntawm tus ncej raws li tus stator. Lub rotor windings yog txuas nrog insulated slip rings mounted ntawm lub rotor ncej.

Q: Dab tsi lub cev muaj zog muaj hlau nplaum ruaj khov rotor?

A: IPM motors muaj cov hlau nplaum ruaj khov rau hauv lub rotor nws tus kheej. Tsis zoo li lawv cov SPM counterparts, qhov chaw ntawm cov hlau nplaum tas mus li ua rau IPM motors zoo heev, thiab tsim nyog rau kev khiav hauj lwm ntawm qhov ceev heev.

Q: Lub tshuab hluav taws xob puas tuaj yeem khiav ntawm AC?

A: Cov hlau nplaum ruaj khov AC lub cev muaj zog (PMAC) zoo ib yam li tus qauv induction AC motors tshwj tsis yog lawv muaj cov hlau nplaum ruaj khov, tsis tshua muaj ntiaj teb txuas rau lawv cov rotors (qhov nruab nrab ntawm lub cev muaj zog uas tig). Muaj cov hlau nplaum tas mus li es tsis txhob siv electromagnets txo lub zog poob hauv lub cev muaj zog.

Q: Dab tsi yog 2 hom rotors sib txawv thiab qhov txawv ntawm lawv?

A: Plain rotors yog du nrog tsis muaj qhov lossis qhov thiab saib yooj yim. Drilled rotors muaj qhov uas pab dej & cua sov dissipate thiab saib txias. Slotted rotors muaj qhov tso cai rau cov pa roj & plua plav kom khiav thiab saib txias.

Q: Hom rotors ntev npaum li cas?

A: Feem ntau, cov rotor dawb paug / du yuav muaj lub neej ntev dua li cov drilled lossis slotted rotors vim lawv qhov chaw loj dua thiab tsis muaj kev ntxhov siab. Drilled rotors, ntawm qhov tod tes, muaj ntau dua rau kev tawg nyob rau hauv kev ntxhov siab heev, uas yuav ua rau lawv lub neej luv.

Q: Dab tsi yog qhov zoo tshaj plaws hlau siv los ua hlau nplaum?

A: Tsuas yog cov ntaub ntawv ferromagnetic xws li hlau, cobalt, thiab npib tsib xee yog nyiam rau cov hlau nplaum muaj zog txaus los txiav txim siab sib nqus.

Q: Koj ua li cas thiaj li ua hluav taws xob nrog cov hlau nplaum?

A: Sib nqus teb tuaj yeem siv los ua hluav taws xob
Tsiv cov hlau nplaum nyob ib ncig ntawm ib lub kauj ntawm cov hlau, los yog txav ib lub kauj ntawm cov hlau nyob ib ncig ntawm cov hlau nplaum, thawb cov electrons hauv cov hlau thiab tsim cov hluav taws xob tam sim no. Cov tshuab hluav taws xob tseem ceeb hloov lub zog kinetic (lub zog ntawm kev txav) mus rau hauv hluav taws xob.
